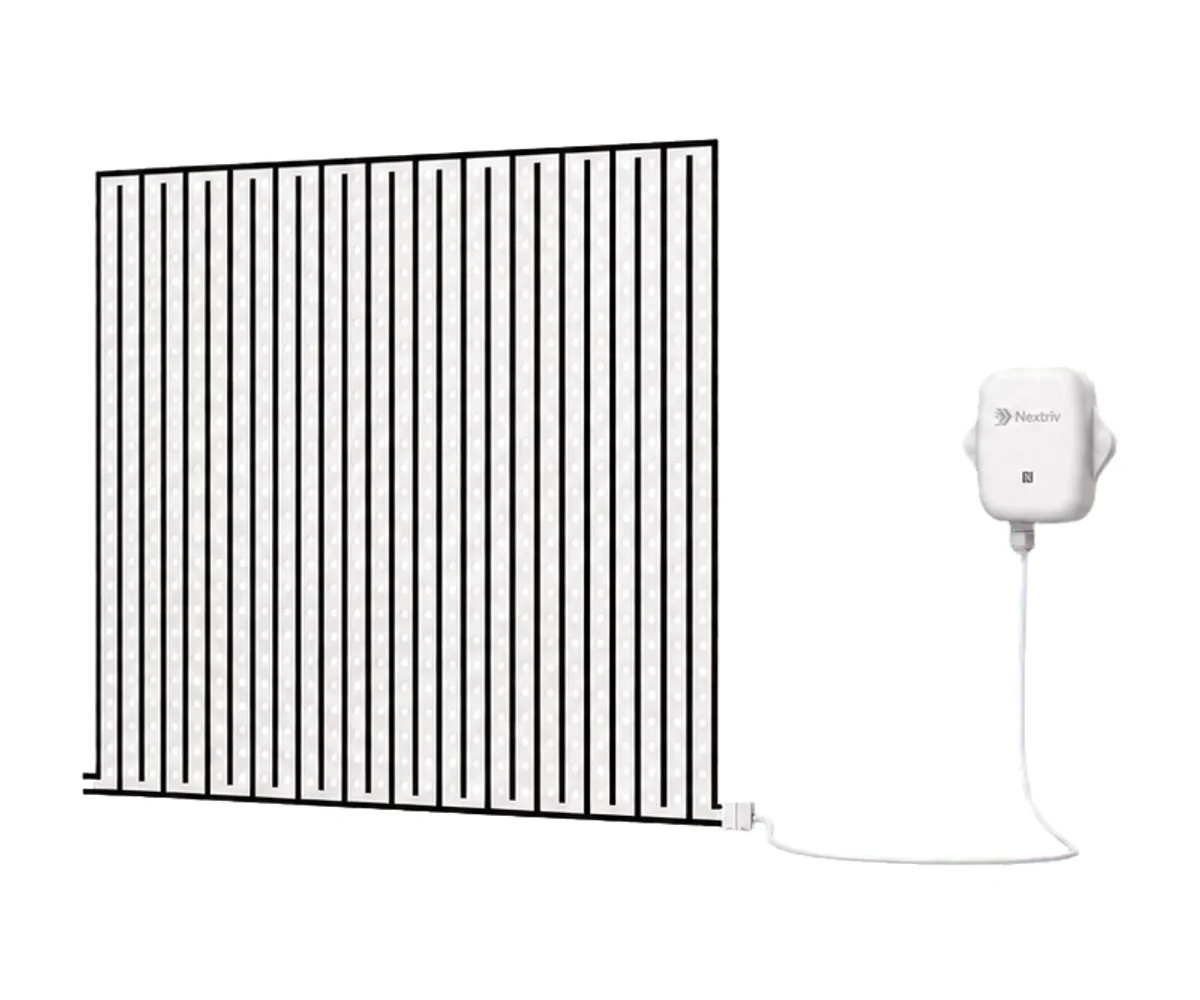

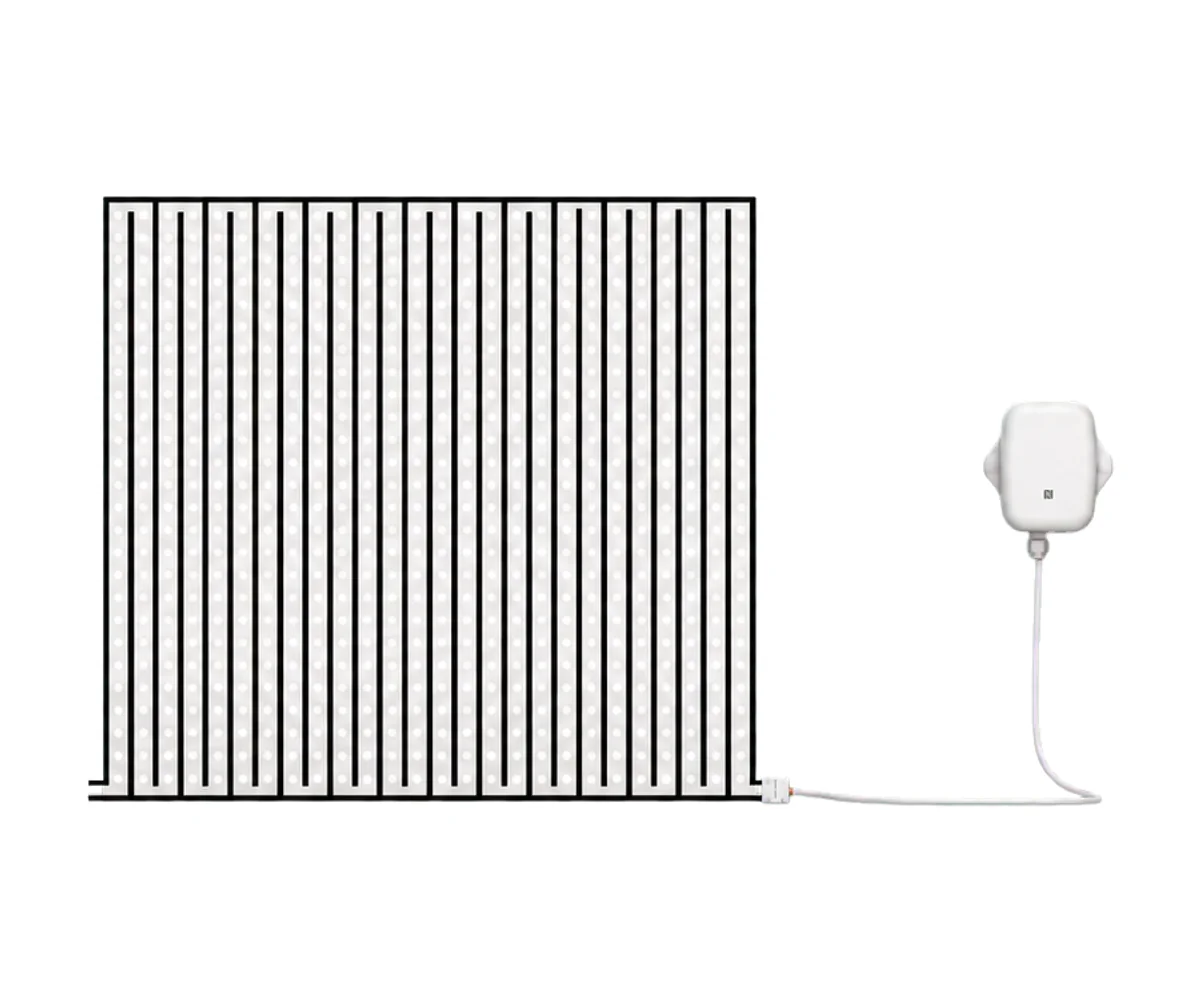

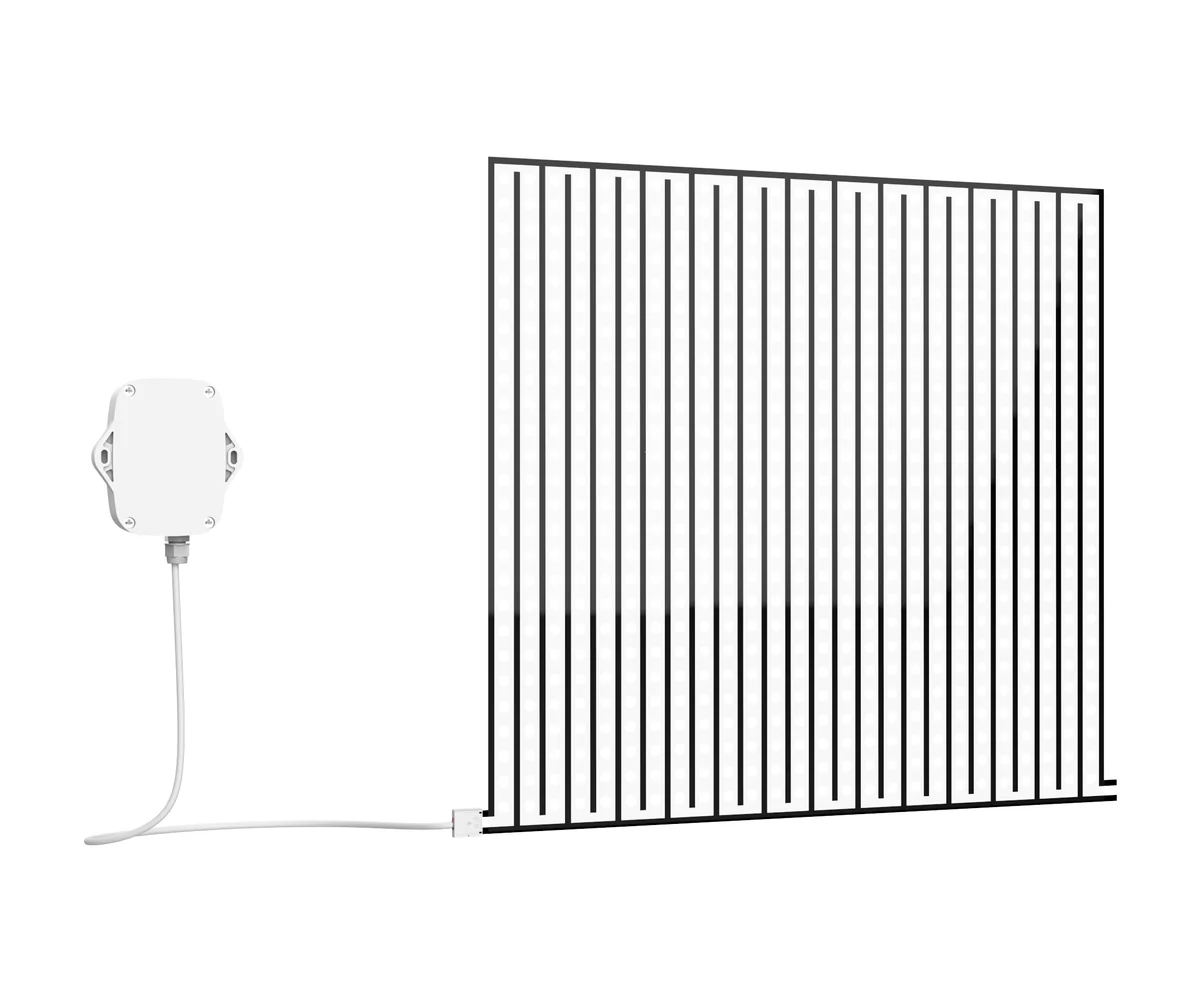

Nextriv Sense Leak Matsurface water leak sensor (membrane mat)

What it is for

A spot sensor guards one place; a sensing cable guards one line. But what if water can appear "anywhere around here" — under a dishwasher, in an air-conditioner drip tray, on the floor of a technical cabinet? Nextriv Sense Leak Mat solves exactly that case: a 40 × 40 cm detection membrane reacts to conductive liquid at any point of its surface. It protects a zone, not a point.

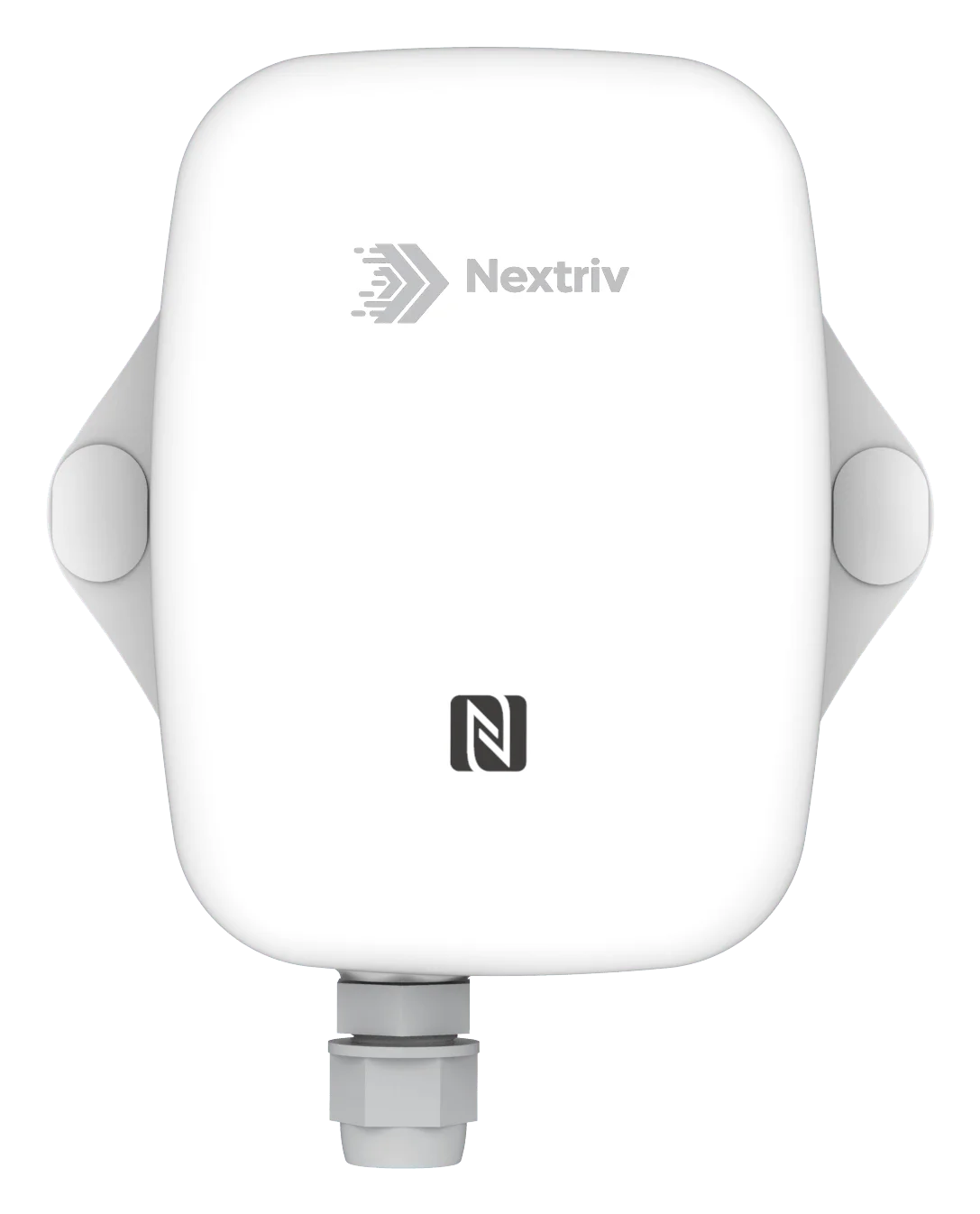

The membrane is 0.25 mm thin — it slides under equipment, under raised-floor tiles or into drip trays without lifting anything. It can be vertically trimmed to fit awkward shapes, and the 1 m cable lets you mount the transmitter higher up, in a good radio position. The IP67 transmitter operates from -30 to 70 °C, so unheated technical rooms are fine too.

The philosophy matches the whole Leak family: the alarm fires within seconds of liquid touching the membrane, and a tamper-proof log of 1,000 events with retransmission after connectivity gaps documents the incident from the first second — evidence for insurers and service teams.

Usage scenes

• Server room: a membrane spanning the full width of a precision-cooling cabinet — no guessing which corner the condensate will pick.
• Commercial kitchen back-of-house: a mat under the dishwasher and water-treatment station; the shift manager is alerted before water reaches the floor.
• Museum or archive: a trimmed membrane on the floor of a display case or collection shelf — protecting a surface where every drop is an irreplaceable loss.
• Heat substation: a mat at the lowest point of the floor catches the leak no matter which valve failed.

Key features

• Detection across the entire 40 × 40 cm surface — a zone instead of a point.
• Vertically trimmable membrane; custom sizes on request.
• 0.25 mm profile — installs under equipment without touching the plumbing.
• Alarm within seconds of contact with conductive liquid.
• 1,000-event log + retransmission after connectivity gaps.
• IP67 enclosure, -30…70 °C operation, NFC configuration.
• Over 10 years on a single replaceable battery.

In the Nextriv system

A flood alarm wakes the right person through six channels (e-mail, SMS, web push, Discord, MS Teams, in-app sound), and escalation policies walk an unacknowledged event up the chain — from technician to external service. The floor plan with markers shows which zone reported water, the event history documents the incident for insurers, and a sensor silent for longer than twice its reporting interval is flagged offline.

Typical deployments

• Data centers: membranes under cooling cabinets and across raised floors.
• Office buildings: technical zones, heat substations and utility rooms in one panel.
• Hotels: laundry and kitchen back-of-house — surface protection where a point sensor is not enough.
• Retail: food-service and cold-chain back rooms, with identical configuration in every store.
